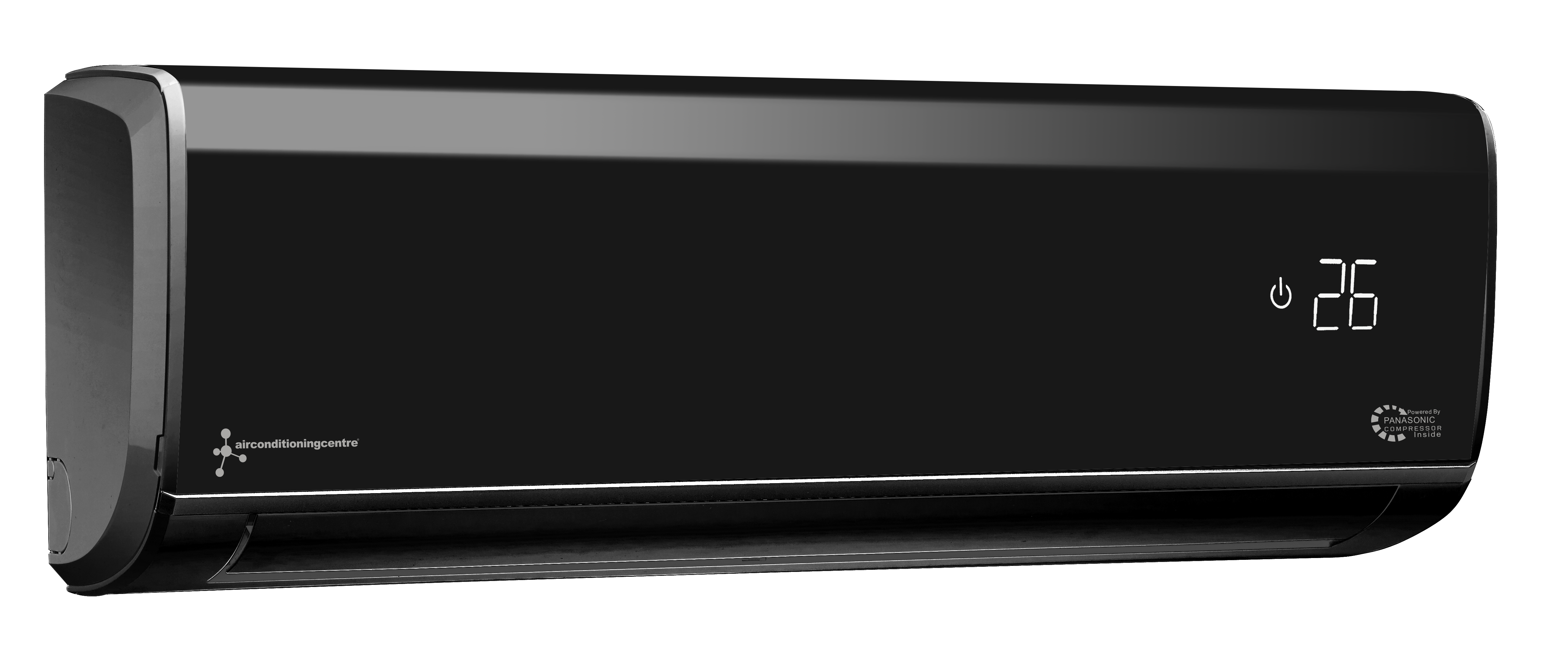

Our split air conditioning units are perfect for both residential and commercial use. The KFR26-YW/AG-H is a highly energy efficient, easy to install, multipurpose single wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling
  • Voice-controllable with Alexa and Google home
  • New refrigerant (R32) non o-zone depleting

This Product is Available as an Installed Package

       5 year warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.

A Setup Guide To Your WiFi, Alexa & Google Home

File:PDF file icon.svg   View Full Product Datasheet

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Click Here for your Nearest Dealer.


 Model KFR-26YW/AG-H
Power supply Ph-V-Hz 1Ph-220~240V-50Hz
Cooling Capacity  Btu/h Btu/h 8530(2662~9895)
Input W 775(75~1430)
Rated current A 3.4
SEER W/W 6.1
Heating Capacity   Btu/h Btu/h 9554(2491~11260)
Input W 775(135~1550)
Rated current A 3.4
Max. input consumption W 1550
Max. current A 6.88
Compressor Type Rotary
Brand Panasonic
Indoor unit Indoor fan motor Speed(hi/mi/lo) r/min Cooling:1300/1150/750/600
Indoor air flow (Hi/Mi/Lo) m3/h 520/440/230/150
Sound Pressure Level (Hi/Mi/Lo) 40/36/24/19
Sound Power Level (Hi/Mi/Lo) dB(A) 54/39/36/30
Dimension (W*H*D) mm 792x279x195
Packing   (W*H*D) mm 871x290x352
Net/Gross weight Kg 9/11.5
Evaporator a.Number of rows 2
d.Tube outside dia.and type mm φ5
e.Coil length x height x width mm 584.4×22.8×266.7
Outdoor unit Outdoor fan motor Speed r/min 880
Outdoor air flow m3/h 1800
Sound Pressure Level dB(A) 52
Sound Power Level 61
Dimension(W*H*D) mm 830X540X325
Packing  (W*H*D) mm 879x605x366
Net/Gross weight Kg 29/32
Condenser a.Number of rows 1
d.Tube outside dia.and type mm φ7
e.Coil length x height x width mm 742×506×19.05
Refrigerant type/weight R32/520g
Design pressure MPa 4.3
Refrigerant piping Liquid side/ Gas side mm 6/9.52
Max. refrigerant pipe length m 20
Operation temp 16~31
Ambient temp range  -15~52
Application area m2 13-25


• WiFi APP controllable (perfect for Building Management)

• Alexa & Google controllable

• 4M Pipe included
