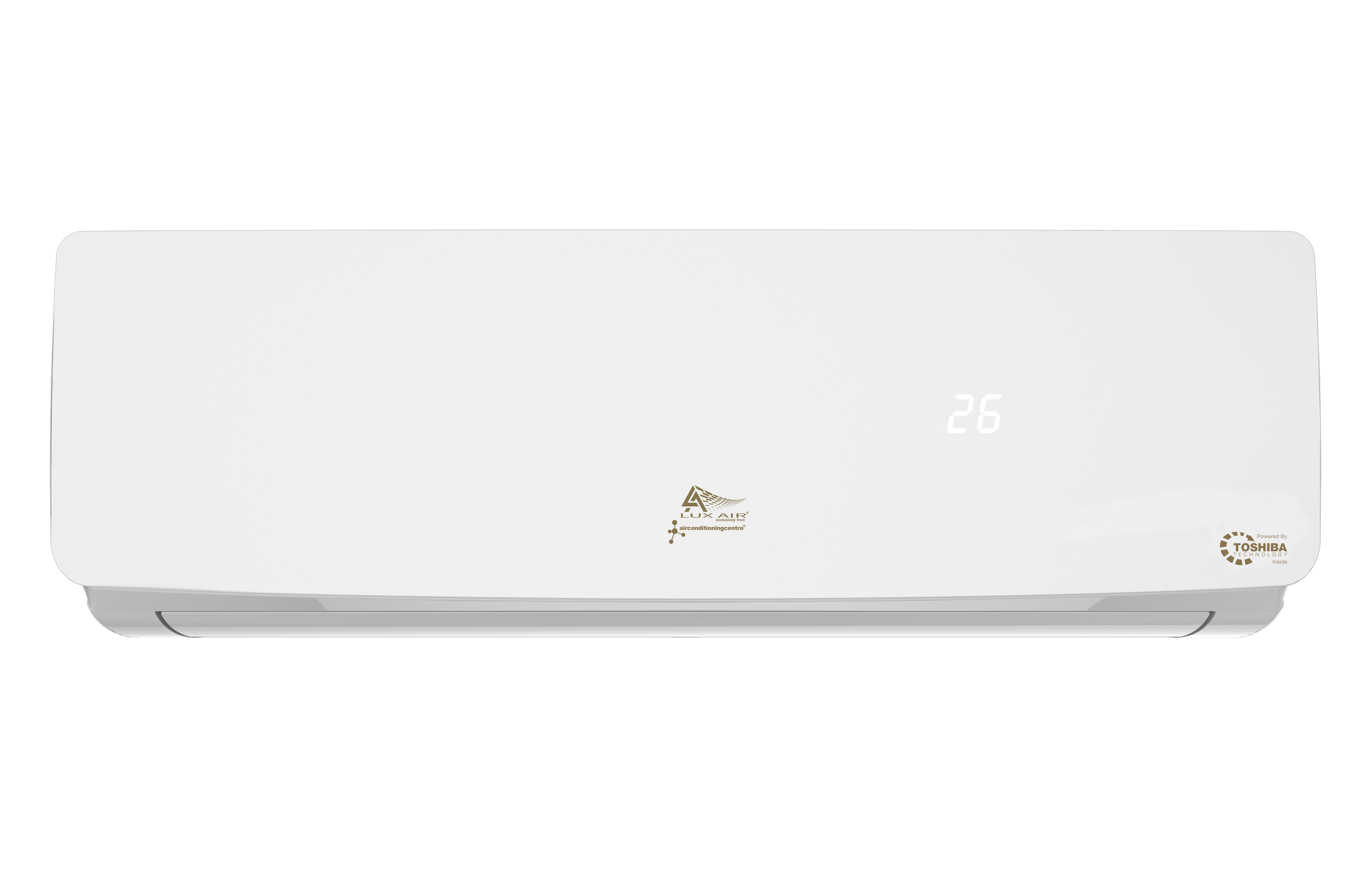

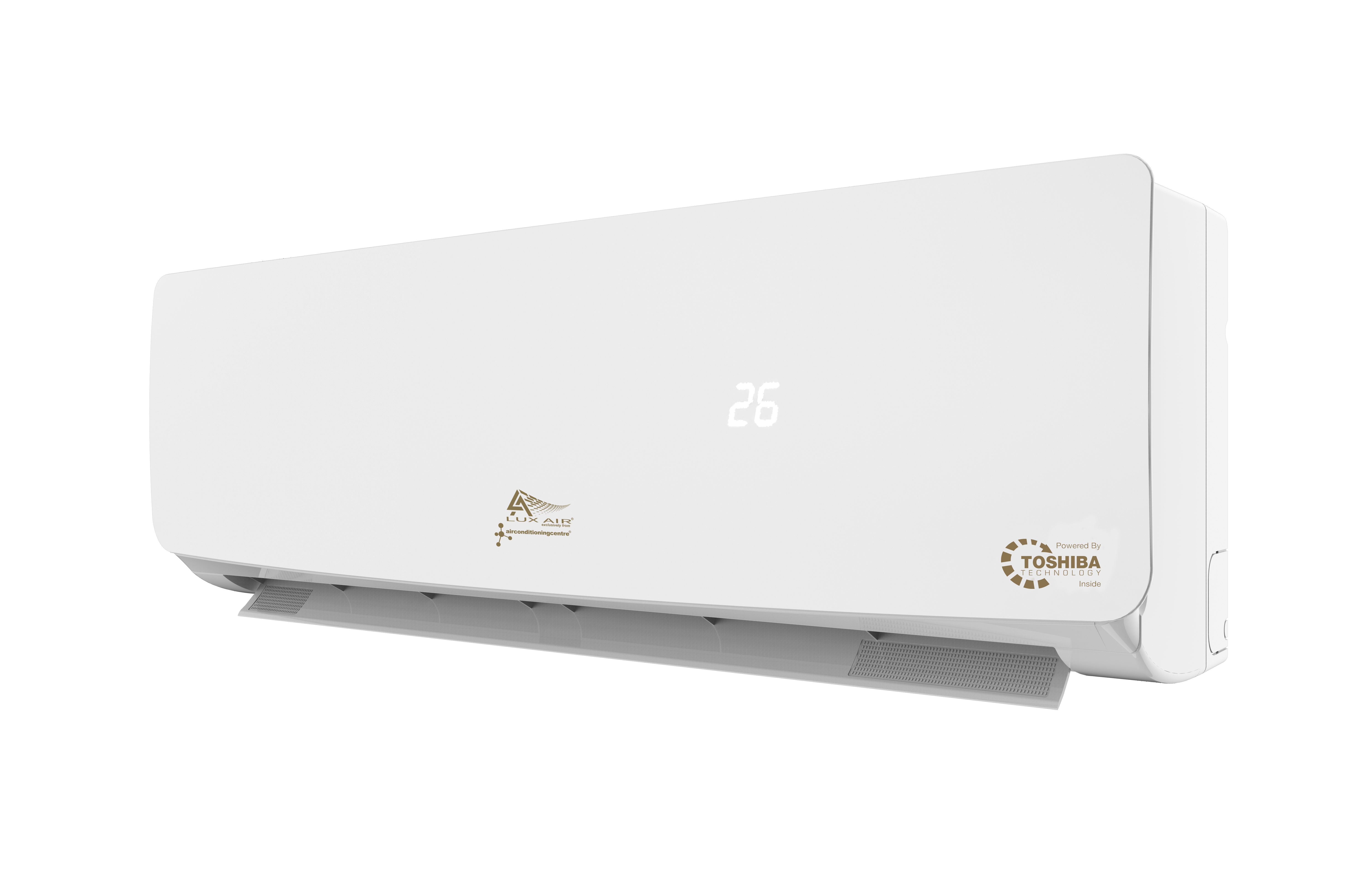

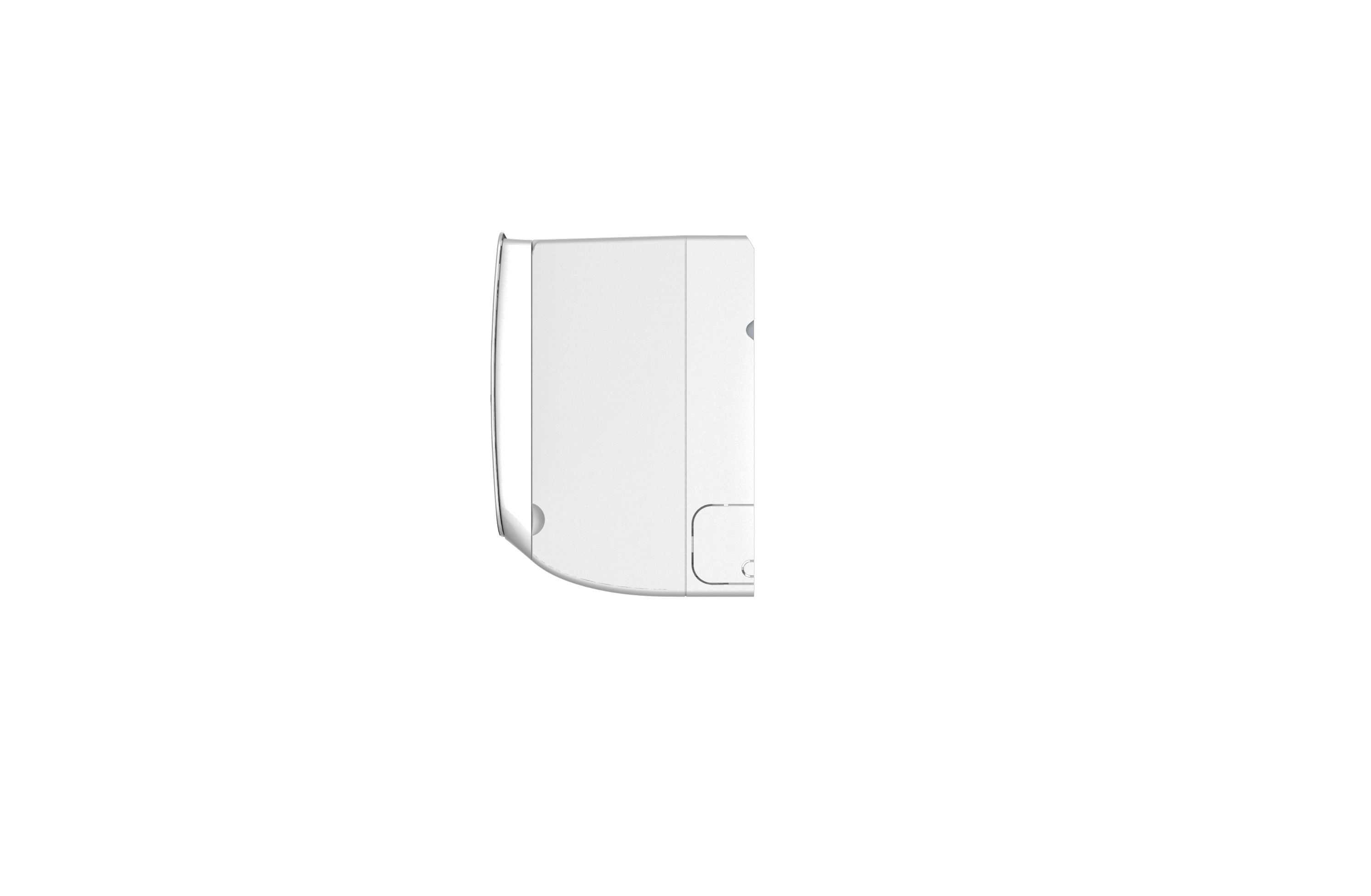

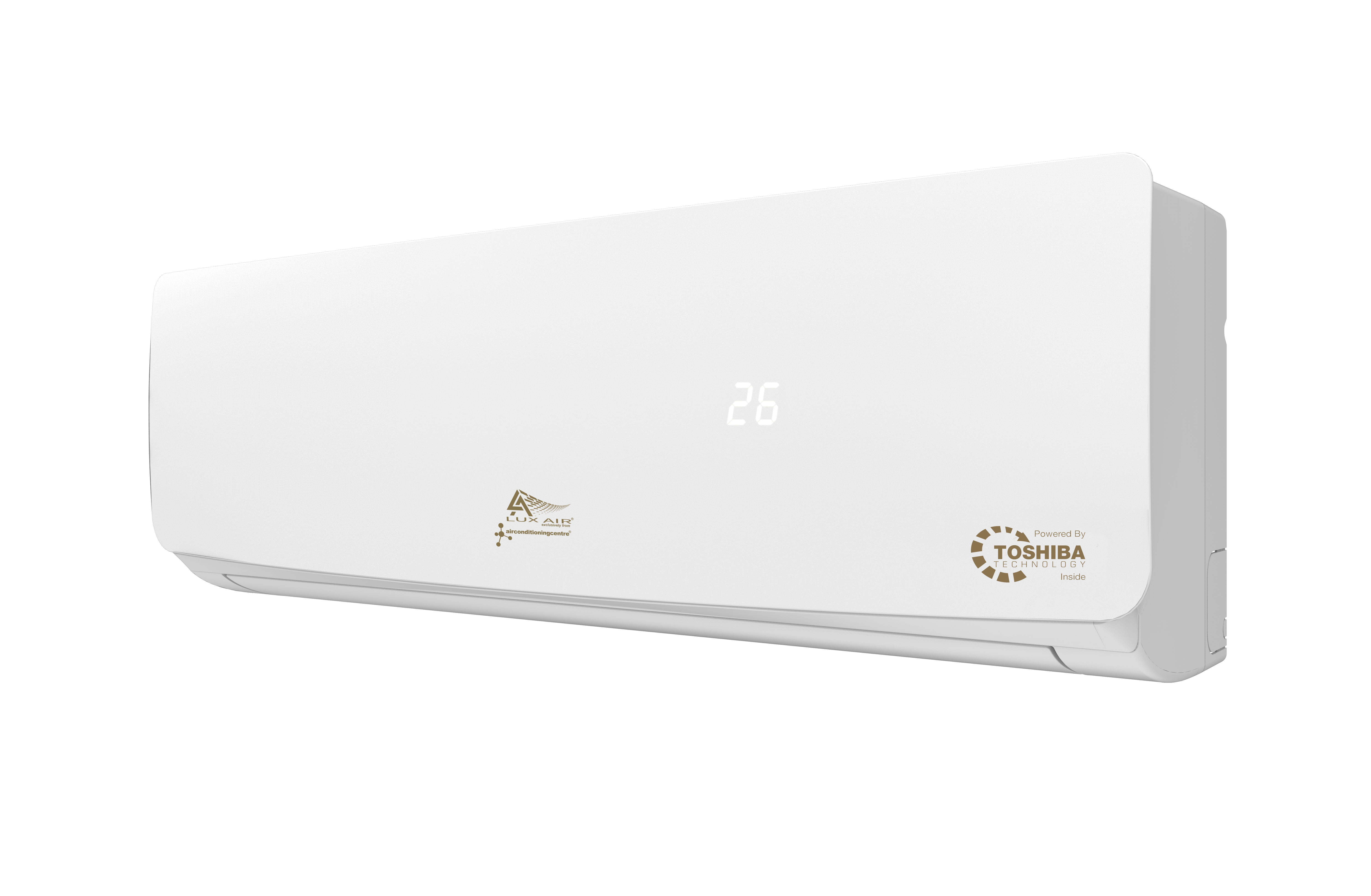

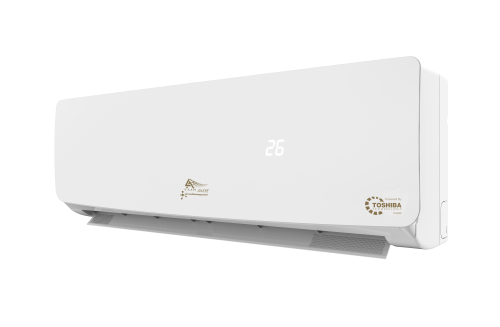

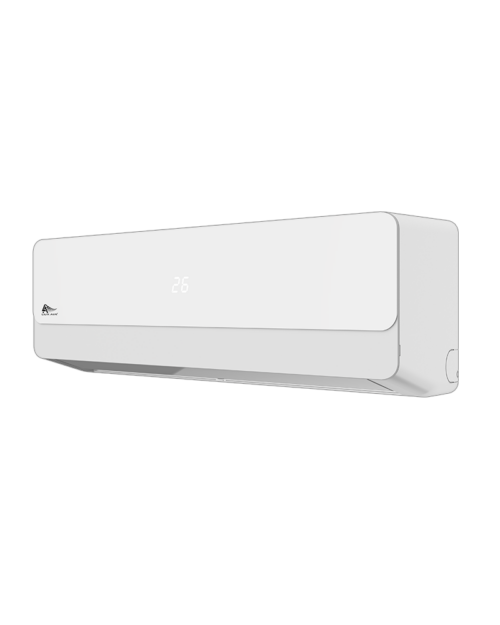

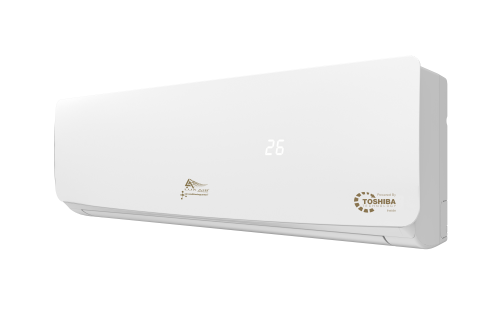

LUX AIR – Air Conditioning with the ability to sanitize and clean the air in a room with the same system that delivers cool air only seams logical. Our split air conditioning units are perfect for both residential and commercial use. The KFR-63IW/LUX is a highly energy efficient, easy to install, multipurpose single wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • UV-C lamp
  • 3 in 1 Filter (Vitamin C, Silver Ion, and Anti-Virus filters)
  • 4D air flow
  • Integrated built-in Wi-Fi
  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling
  • Voice-controllable with Alexa and Google home
  • New refrigerant (R32) non o-zone depleting

This Product is Available as an Installed Package

5 year warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

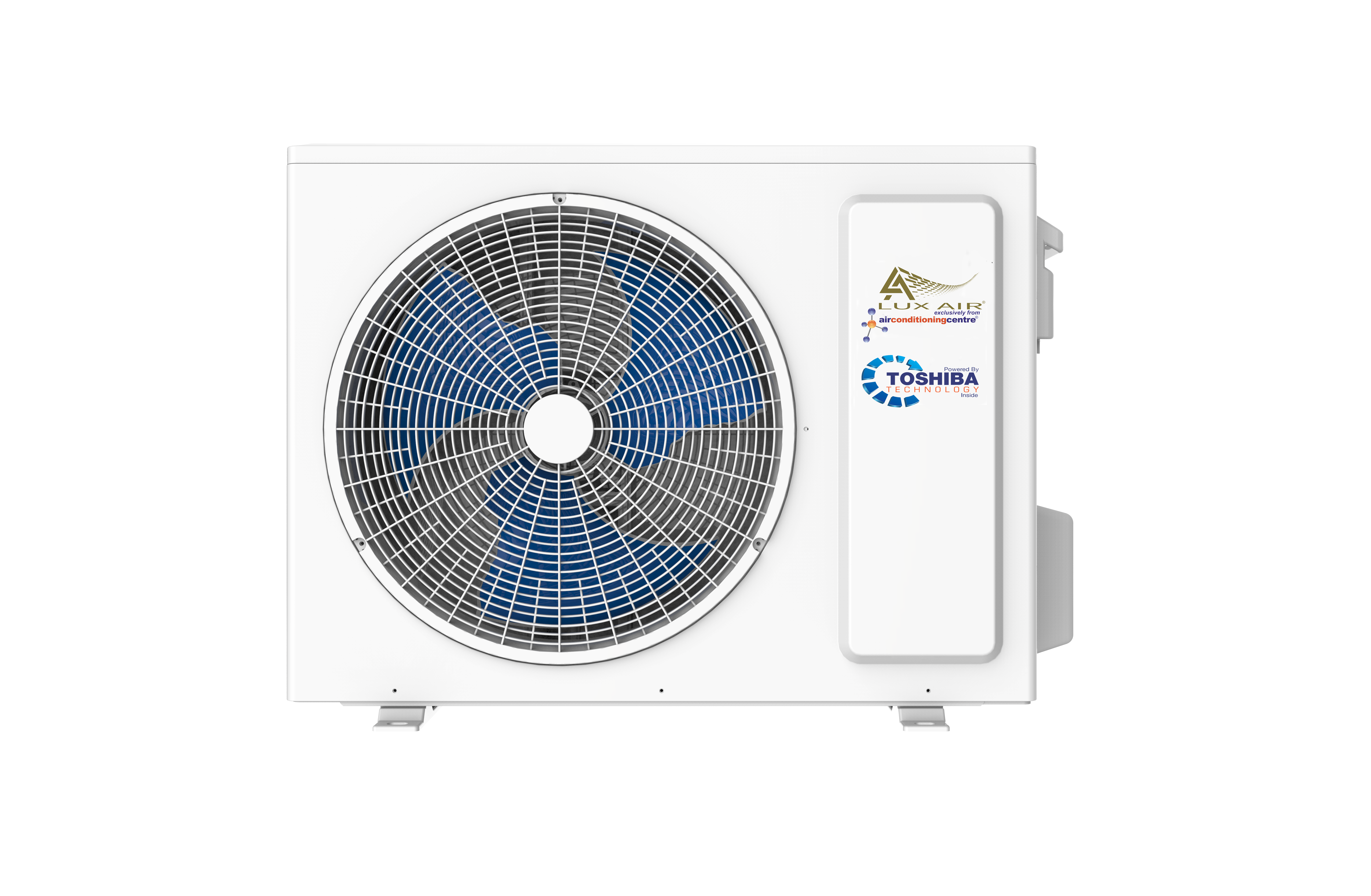

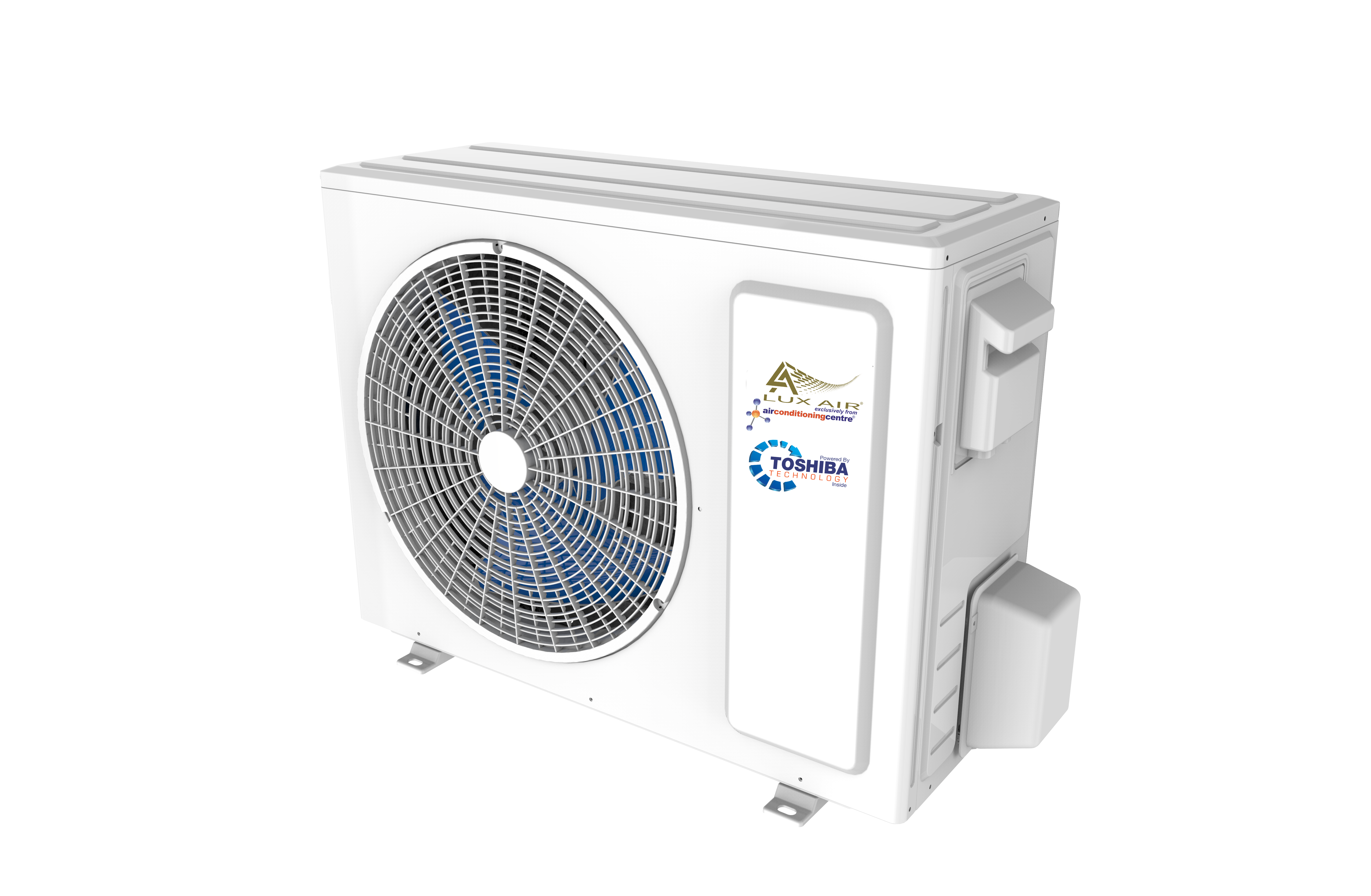

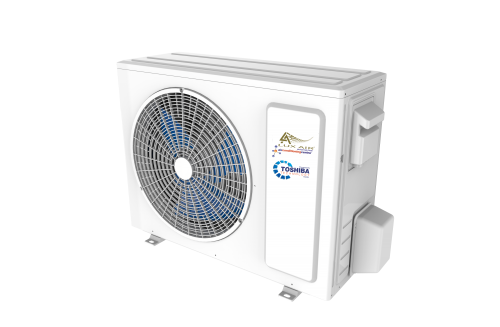

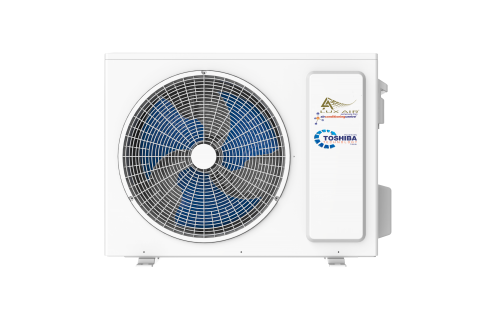

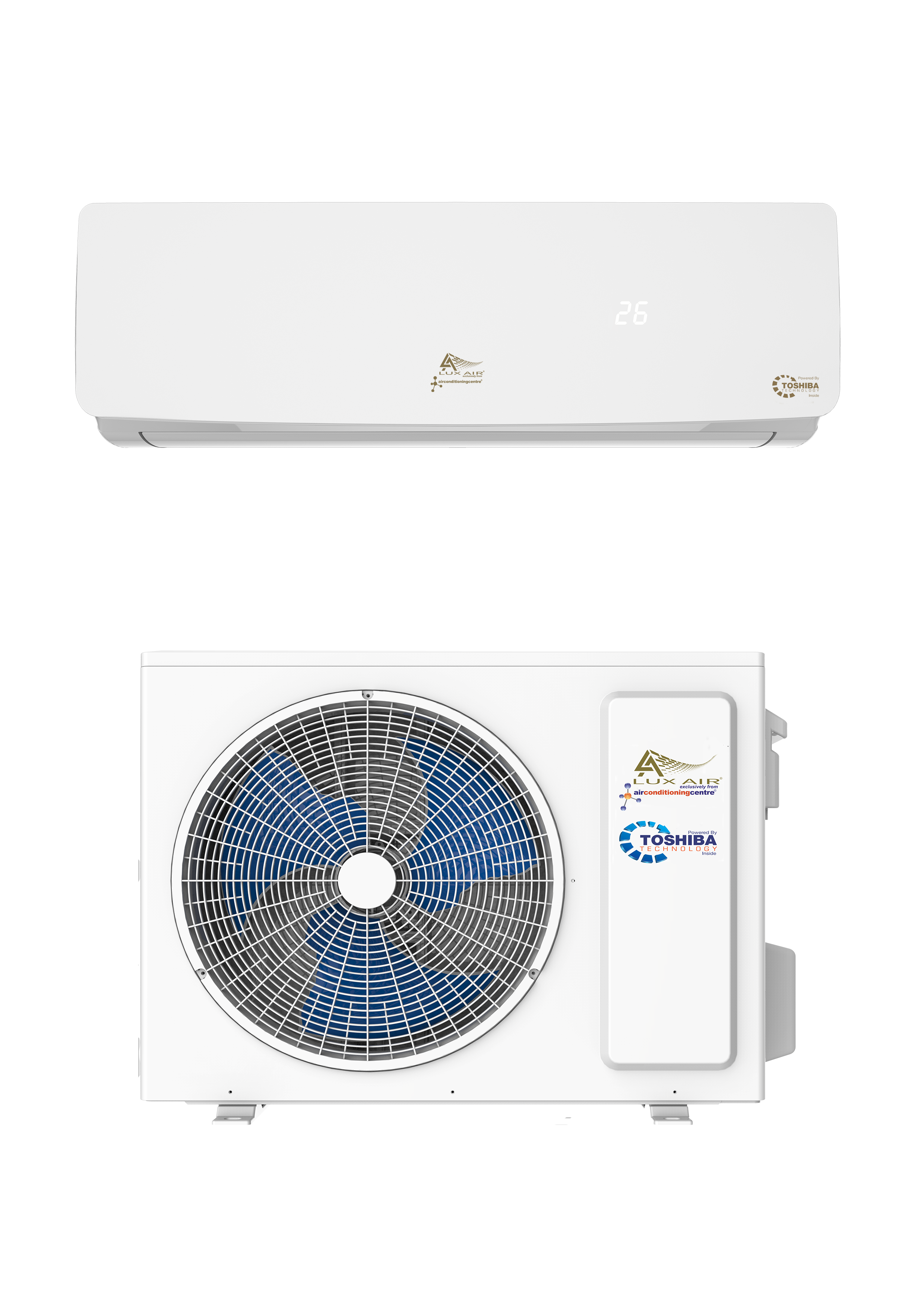

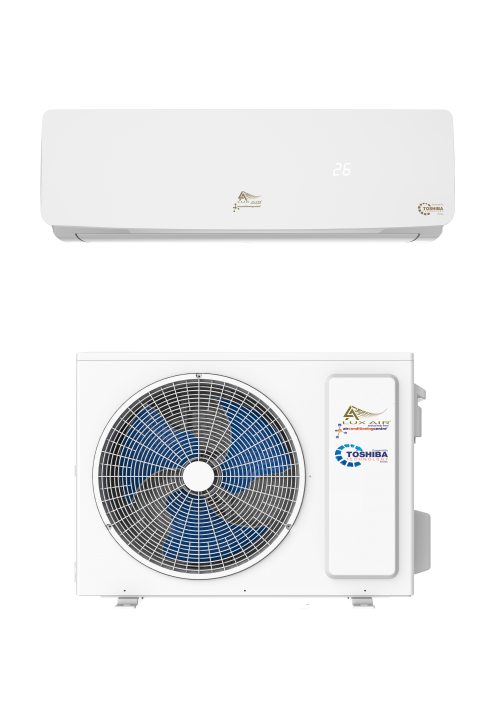

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.

A Setup Guide To Your WiFi, Alexa & Google Home

View Full Product Datasheet

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Click Here for your Nearest Dealer.



Model KFR-63IW/LUX
Power supply Ph-V-Hz 230V/50HZ
Power Supply Mode Outdoor
Cooling Capacity W 7100(1110-7800)
Power Input W 2300(450-3350)
Rated Current A 10.6(2.1-16.4)
SEER W/W 6.1
Energy Level-Cooling A++
Heating Capacity W 7100(1370-8200)
Power Input W 2200(450-3350)
Rated Current A 10.1(2.1-16.8)
SCOP W/W 4.0
Energy Level-Heating A+ (Average Season)
A+++ (Warmer Season)
Moisture removal L/h 2.2
Max. input consumption W 3350
Max. current A 16.8
## Type Rotary
## Brand GMCC
## Capacity W 4615
## Input W 1180
## Rated current(RLA) A 7.25
## Locked rotor Amp(LRA) A /
## Capacitor uF /
Power output watts 45
Capacitor uF 3
Motor speed  (TU/Hi/Mi/Lo) RPM 1280
Evaporator a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm 21×12.7
c.Fin material Hydrophilic
d.Tube outside dia.and type mm Φ7
e.Coil length x height x width mm 778x357x25.4
Fan Indoor fan Diameter mm Φ107.6*780
Indoor air flow m3/h 1200/1050/900/800
Sound Pressure Level (Hi/Mi/Lo) dB(A) 46/43/40/37
Sound Power Level (Hi/Mi/Lo) dB(A) 59/54/51/44
Unit dimension (W*H*D) mm 1025*320*235
Packing (W*H*D) mm 1105*315*405
output power Watt 70
Capacitor uF /
Motor speed Rpm 850
Fan Diameter mm 455*152
No. of Blade Pieces 3
Condenser a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm 22×19.05
c.Fin material Hydrophilic
d.Tube outside dia.and type mm Ф7
e.Coil length x height x width mm 857/827x572x38.1
Sound Pressure Level dB(A) 59
Sound Power Level dB(A) 69
Unit dimension (W*H*D) mm 820*635*310
Packing   (W*H*D) mm 972*680*400
Refrigerant type R32
Refrigerant charge Kg 1.4
Liquid side mm 9.52
Gas side mm 15.88
Max. refrigerant pipe length m 15
Max. difference in level m 8
Chassis heating belt W 85


• WiFi APP controllable (perfect for Building Management)

• Alexa & Google controllable

• 7.5M Pipe included
