iPAC-18CS Console Split System 18000BTU 5KW Heat & Cool

//iPAC-18CS Console Split System 18000BTU 5KW Heat & Cool

iPAC-18CS Console Split System 18000BTU 5KW Heat & Cool

iPAC-18CS Console Split System 18000 BTU System

Recommended room size of 25-42 m²

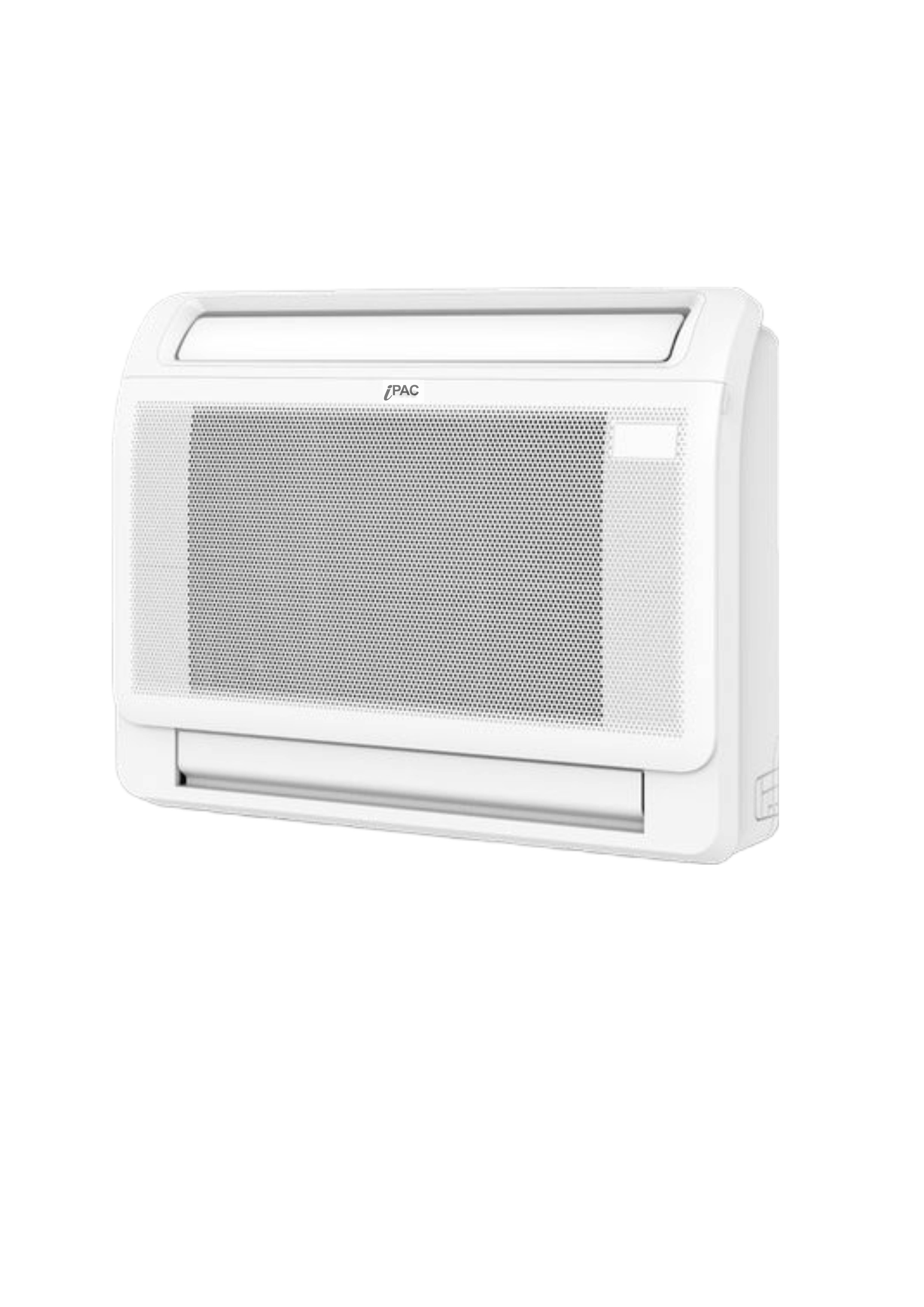

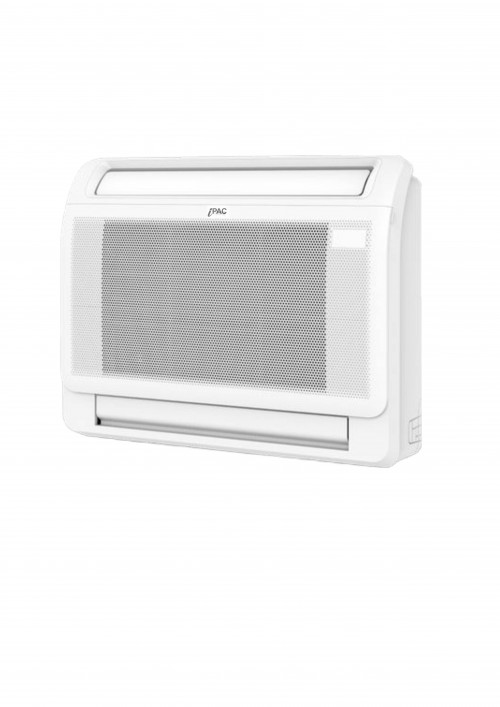

Our split air conditioning units are perfect for both residential and commercial use. The iPAC-18CS is a highly energy efficient, multipurpose single split console unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling

 Warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

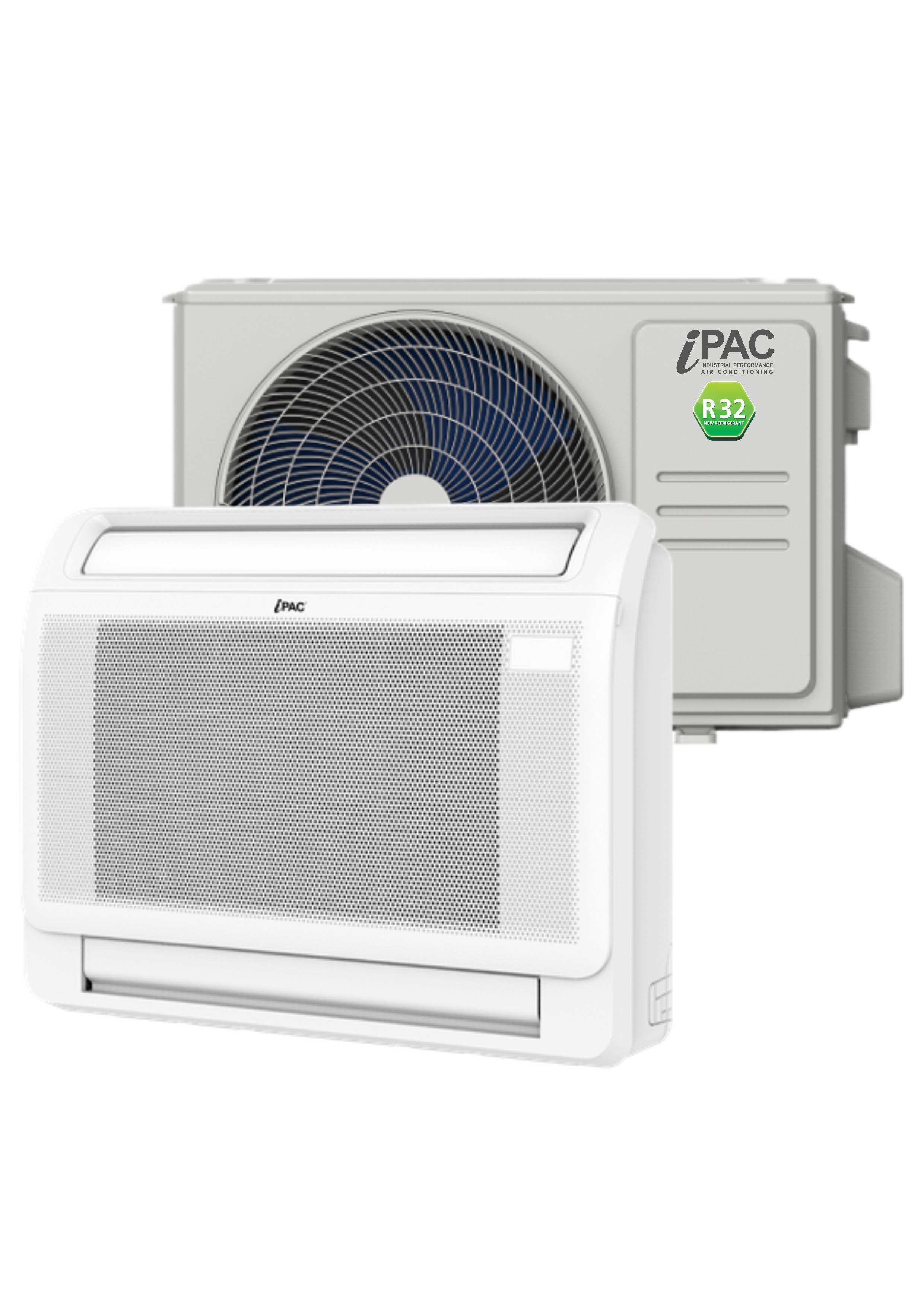

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.

View our Stockists

 File:PDF file icon.svg   View Full Product Datasheet

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Category:

Description

INDOOR UNIT

Indoor unit Dimension(W*D*H) mm 794x200x621
Packing   (W*D*H) mm 865x280x719
Net/Gross weight Kg 14.9/18.8

OUTDOOR UNIT

Outdoor unit Dimension(W*D*H) mm 805x330x554
Packing  (W*D*H) mm 915x370x615
Net/Gross weight Kg 32.5/35.2

INDOOR UNIT

Model iPAC-18CS
Indoor iPAC-18CS Indoor Unit
Average Pdesignc kW 5.0
SEER W/W 6.7
Energy Efficiency Class A++
Pdesignh kW 4.0
SCOP W/W 4.0
Energy Efficiency Class A+
Tbiv ℃ -7
Warmer Pdesignh kW 5.0
SCOP W/W 5.0
Energy Efficiency Class A++
Tbiv ℃ 2
Tol ℃ -15
Power supply    (Indoor ) V,Hz,Ph 220-240V,1Ph，50Hz
Power supply    (Outdoor ) V,Hz,Ph 220-240V,1Ph，50Hz
Cooling Capacity Btu/h 17000（9000~19000)
Capacity kW 4.98(2.64~5.57)
Input W 1500（650~1950)
Current A 6.70（2.95~8.70)
Heating Capacity Btu/h 18000（7500~21500)
Capacity kW 5.28(2.20~6.30)
Input W 1420（600~1900)
current A 6.40（2.75~8.50)
Indoor fan motor Model ZKFP-13-8-136
ZKFP-13-8-104
Old Model /
Qty 2
Input W 26*2
Capacitor uF /
Speed(Hi/Mi/Lo) r/min 1100/1000/900
Indoor coil a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Φ7,Inner groove tube
f.Coil length x height x width mm 550x378x26.74
g.Number of circuits 2
Indoor air flow (Hi/Mi/Lo) m3/h 780/690/600
Indoor sound pressure level(Hi/Mi/Lo/Si) dB(A) 41/38/32/26
Indoor sound power level (Hi) dB(A) 55
Outdoor sound pressure level dB(A) 55
Outdoor sound power level (Hi) dB(A) 63
Indoor unit Dimension(W*D*H) mm 794x200x621
Packing   (W*D*H) mm 865x280x719
Net/Gross weight Kg 14.9/18.8
Design pressure MPa 4.3/1.7
Drainage water pipe dia. mm ODΦ16mm
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)
Controller Remote Control
Operation temperature ℃ 16~30
Room  temperature Cooling ℃ 16~32
Heating ℃ 0~30

OUTDOOR UNIT

Model iPAC-18CS/50CC-ODU
Code 22022516001742
Power supply V,Hz,Ph 220-240V,1Ph，50Hz
Max. input consumption W 2950
Max. current A 13.5
Compressor Model KSN140D21UFZ
Type ROTARY
Brand GMCC
Capacity W 4385
Input W 1140
Rated current(RLA) A 7.50
Refrigerant oil/oil charge ml VG74/440
Outdoor fan motor Model ZKFN-34-10-1
Old Model ZKFN-34-10-1
Qty 1
Input W 49.5
Capacitor uF 0
Speed r/min 760/650
Outdoor coil a.Number of rows 2.0
b.Tube pitch(a)x row pitch(b) mm 21×22
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Ф7,Inner groove tube
f.Coil length x height x width mm 860*504*44
g.Number of circuits 4
Outdoor air flow 2100
Throttle type EXV
Outdoor unit Dimension(W*D*H) mm 805x330x554
Packing  (W*D*H) mm 915x370x615
Net/Gross weight Kg 32.5/35.2
Refrigerant type Type R32
GWP 675
Kg 1.15
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)
Max. refrigerant pipe length m 30
Max. difference in level m 20
Ambient temperature Cooling ℃ -15～50
Heating ℃ -20～24
