KFR53-IW/AG-H 18000BTU

KFR53-IW/AG-H 18000BTU

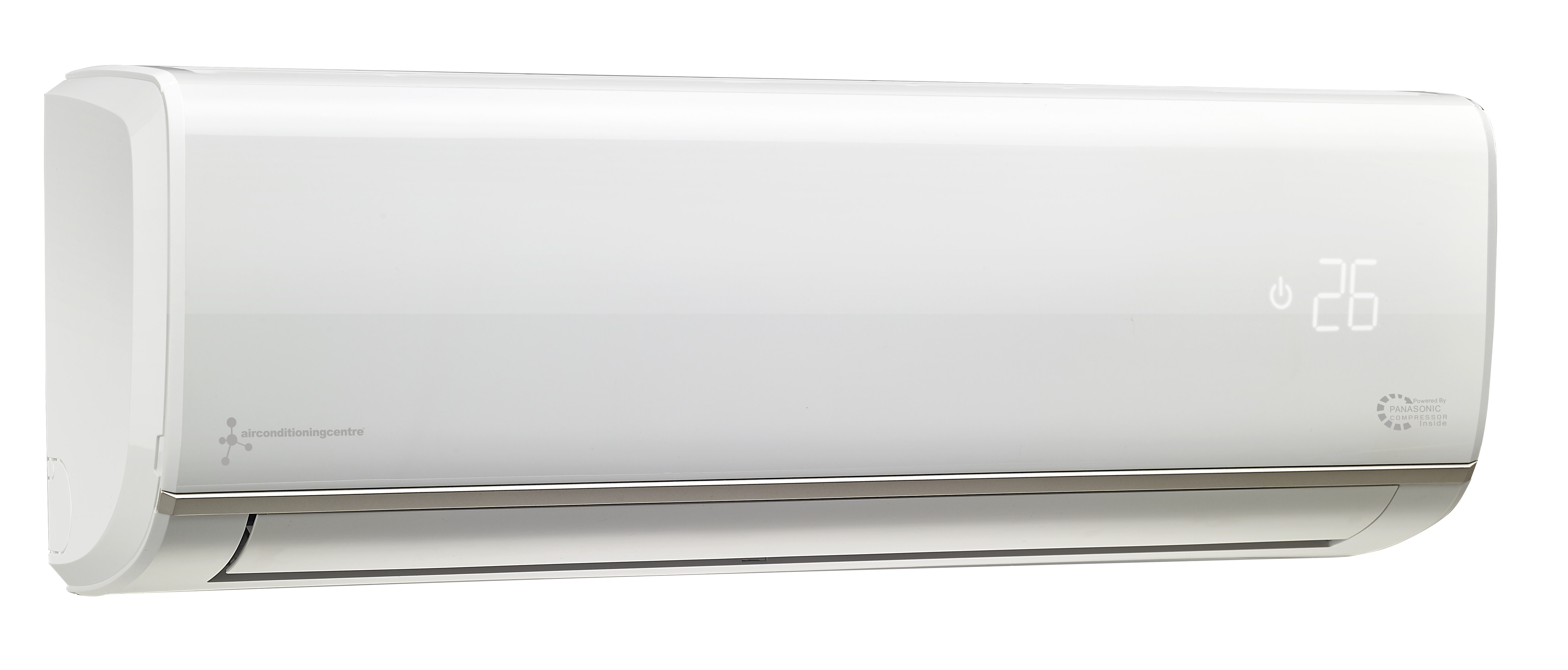

KFR53-IW/AG-H

Our split air conditioning units are perfect for both residential and commercial use. The KFR53-IW/AG-H is a highly energy efficient, easy to install, multipurpose single wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling
  • Voice-controllable with Alexa and Google home
  • New refrigerant (R32) non o-zone depleting

This Product is Available as an Installed Package

5 year warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.

A Setup Guide To Your WiFi, Alexa & Google Home

File:PDF file icon.svg   View Full Product Datasheet

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Click Here for your Nearest Dealer.

Description

 Model KFR-53IW/AG-H
Power supply Ph-V-Hz 1Ph-220~240V-50Hz
Cooling Capacity  Btu/h Btu/h 18000
Input W 1540(320~2460)
Rated current A 7.0
SEER W/W 6.1
Heating Capacity   Btu/h Btu/h 19000
Input W 1480(350~2300)
Rated current A 6.3
SCOP W/W 4
Moisture Removal (Duhumidification) L/h 1.9
Max. input consumption W 2300
Max. current A 10.2
Compressor Type Rotary
Brand Panasonic
model  9RD132ZEA21
Compressor Oil FV50S
Indoor unit Indoor fan motor Speed(hi/mi/lo) r/min Cooling:1230/1130/900/800
Heating:1350/1200/900/850
Indoor air flow (Hi/Mi/Lo) m3/h 850/760/570/480
Sound Pressure Level (Hi/Mi/Lo) 47/44/31/29
Sound Power Level (Hi/Mi/Lo) dB(A) 58/55/42/40
Dimension (W*H*D) mm 972x302x224
Packing   (W*H*D) mm 1047x314x377
Net/Gross weight Kg 13/15.5
Evaporator a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm /
c.Fin material /
d.Tube outside dia.and type mm φ7
e.Coil length x height x width mm 715×304.8×25.4
Outdoor unit Outdoor fan motor Speed r/min 850
Outdoor air flow m3/h 2800
Sound Pressure Level dB(A) 55
Sound Power Level 63
Dimension(W*H*D) mm 890x598x372
Packing  (W*H*D) mm 941x663x412
Net/Gross weight Kg 40/43
Condenser a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm /
c.Fin material /
d.Tube outside dia.and type mm φ7
e.Coil length x height x width mm 869×38.1×572
Refrigerant type/weight R32/930g
Design pressure MPa 4.3
Refrigerant piping Liquid side/ Gas side mm 6/12
Max. refrigerant pipe length m 20
Max. difference in level m /
Plug type /
Thermostat type /
Operation temp 16~31
Ambient temp  -15~52
Application area m2 25-36



• WiFi APP controllable (perfect for Building Management)

• Alexa & Google controllable

• 4M Pipe included
